KR-A5M
Drive method Bipolar constant current pentagon drive
Input power DC24V(DC20~35V)3A MAX
Rated current 0.5~1.5A/Phase(default 0.75A/Phase)
Max. response frequency 50 Kpps
Input voltage Photocoupler Input 0-8V
Function Pulse input method selection, Full/Half step selection,
Auto current down, Run/Stop current setting,
Hold off function
Ambient temp. 0~40°C(no freezing)
Ambient hum. 35~85%RH(at non-dew status)

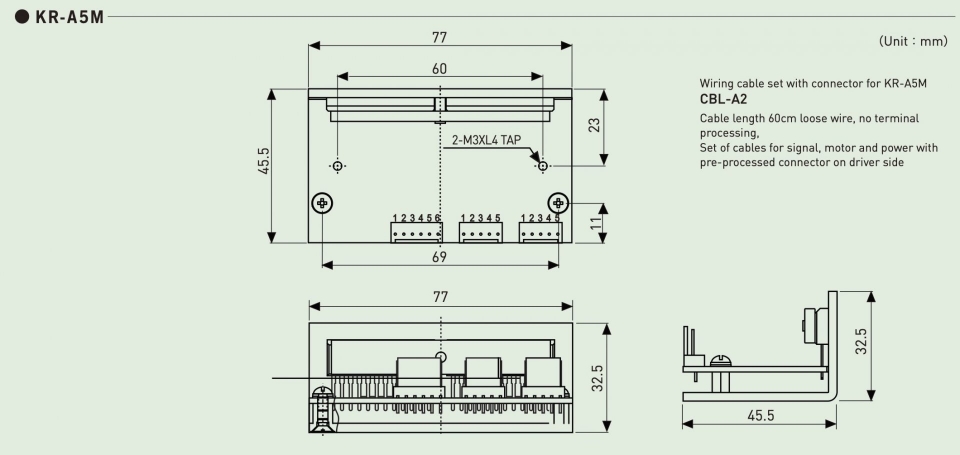

Dimensions W77×D45.5×H32.5(mm)
Weight Approx. 74g
Attached parts（MOLEX compatible）
Connector housing
CN1 SIGNAL 6pin : Part No.5051-06 1pcs
CN2 MOTOR 5pin : Part No.5051-05 1pcs
CN3 POWER 5pin : Part No.5051-05 1pcs
Contact pin
Part No.5159TL 16pcs
