KR-A5MC / KR-A5CC
Drive method Bipolar constant current pentagon drive
Input power DC24V(DC20~35V)3A MAX
Rated current [MC]0.5~1.5A/Phase(default 0.75A/Phase)
[CC]0.1~0.9A/Phase(default 0.35A/Phase)
Max. response frequency 50 Kpps
Input voltage Photocoupler Input 0-8V
Function Pulse input method selection, Full/Half step selection,
Auto current down, Run/Stop current setting,
Hold off function
Ambient temp. 0~40°C(no freezing)
Ambient hum. 35~85%RH(at non-dew status)

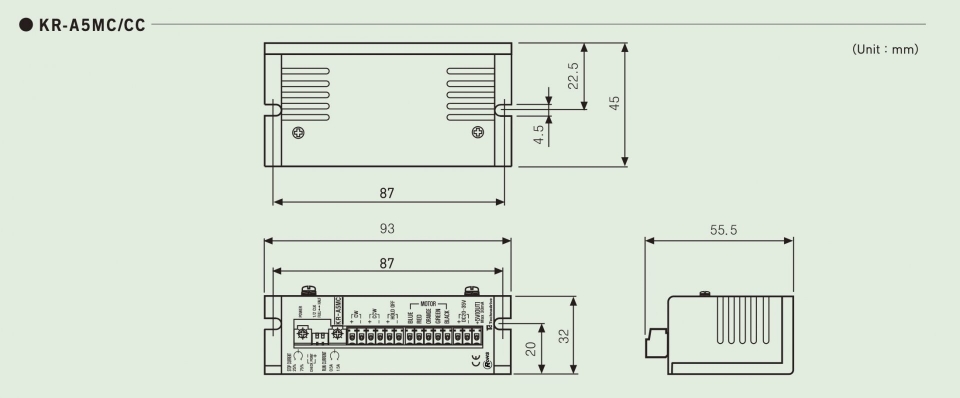

Dimensions [MC/CC] W93×D45×H32(mm)
Weight [MC/CC] Approx. 120g
Attached parts（PHOENIX compatible）
Connector
SIGNAL : Part No. MC1,5/6-ST-3,5 1pcs
MOTOR : Part No. MC1,5/5-ST-3,5 1pcs
POWER : Part No. MC1,5/3-ST-3,5 1pcs
