KR-A55MC
Drive method Bipolar constant current pentagon drive
Input power DC24V(DC20~35V)3A MAX
Rated current 0.5~1.5A/Phase(default 0.75A/Phase)
Resolution 1/1~1/250(16 types)
Max. response frequency 500Kpps or Less
Input voltage Photocoupler Input 0-8V
Function Pulse input method selection, Test mode
Full/Half step selection, Auto current down,
Run/Stop current setting,
Zero point excitation output signal(ZERO OUT)
Hold off function, Microstep resolution setting/selection
Ambient temp. 0~40°C(no freezing)
Ambient hum. 35~85%RH(at non-dew status)

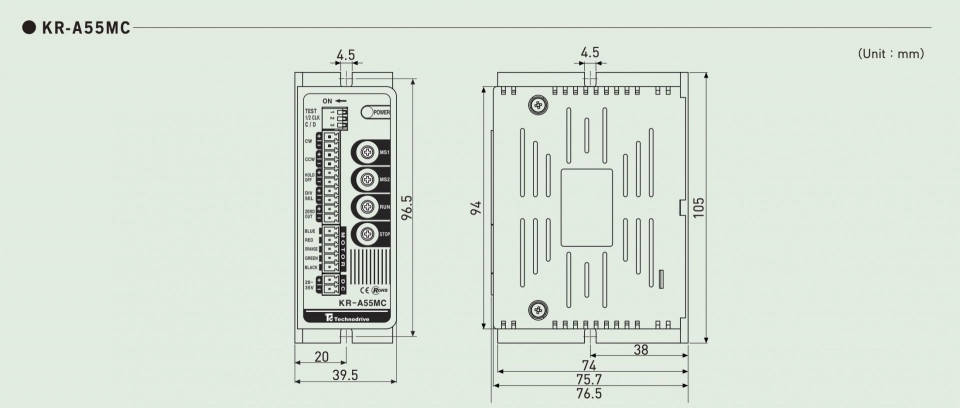

Dimensions W105×D76.5×H39.5(mm)
Weight Approx. 220g
Attached parts（PHOENIX compatible）
Connector
SIGNAL : Part No. MC1,5/10-ST-3,5 1pcs
MOTOR : Part No. MC1,5/5-ST-3,5 1pcs
POWER : Part No. MC1,5/2-ST-3,5 1pcs
Input power DC24V(DC20~35V)3A MAX
Rated current 0.5~1.5A/Phase(default 0.75A/Phase)
Resolution 1/1~1/250(16 types)
Max. response frequency 500Kpps or Less
Input voltage Photocoupler Input 0-8V
Function Pulse input method selection, Test mode
Full/Half step selection, Auto current down,
Run/Stop current setting,
Zero point excitation output signal(ZERO OUT)
Hold off function, Microstep resolution setting/selection
Ambient temp. 0~40°C(no freezing)
Ambient hum. 35~85%RH(at non-dew status)
Dimensions W105×D76.5×H39.5(mm)
Weight Approx. 220g
Attached parts（PHOENIX compatible）
Connector
SIGNAL : Part No. MC1,5/10-ST-3,5 1pcs
MOTOR : Part No. MC1,5/5-ST-3,5 1pcs
POWER : Part No. MC1,5/2-ST-3,5 1pcs
